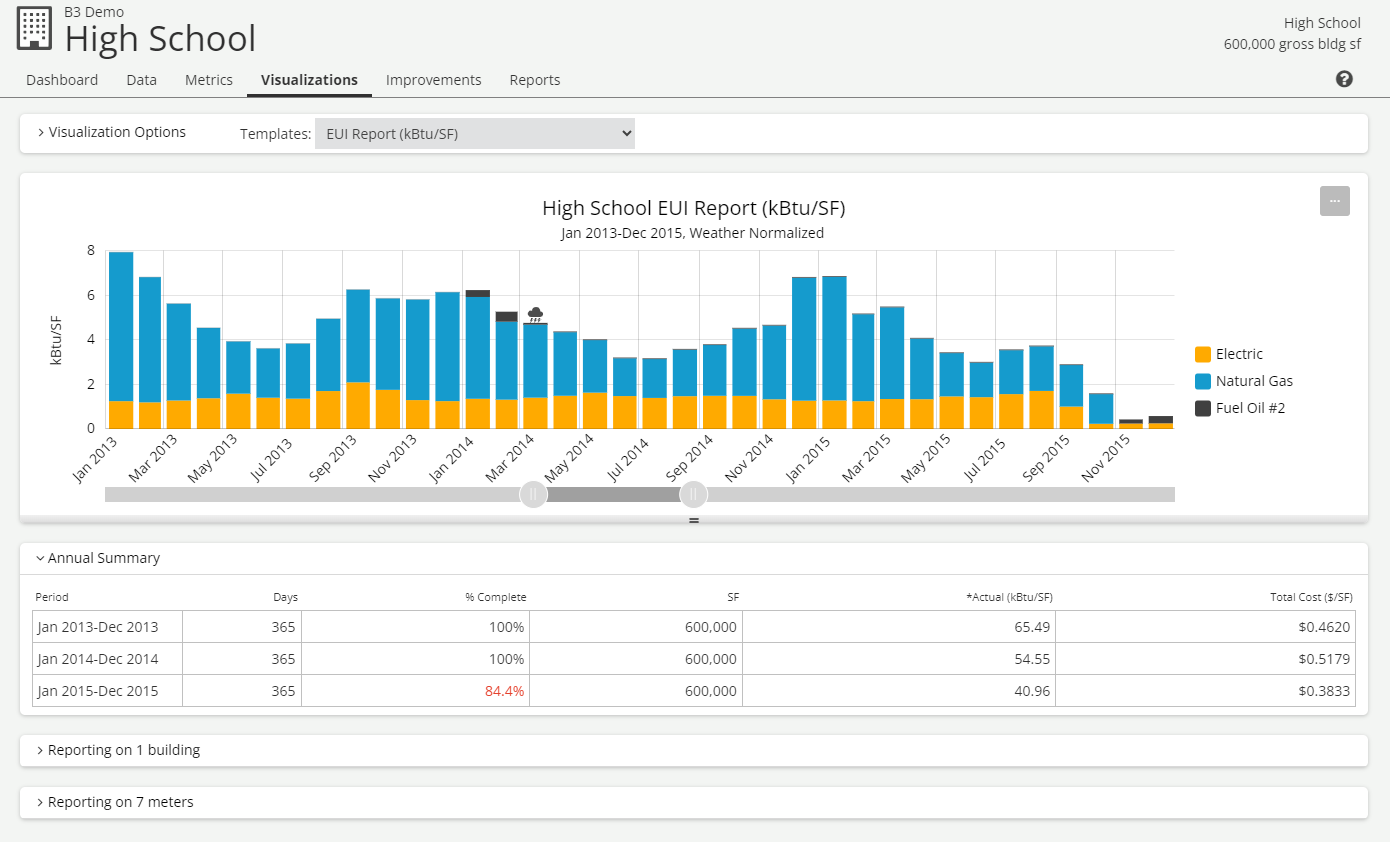

The Visualizations tab of B3 Benchmarking is a powerful way to visualize organization and site energy use, spot trends, and manage usage. Visualizations works the same for an organization summary or an individual site. Visualizations at the organization level automatically roll up all the usage data from all complete sites in the organization to the summary level. The Templates dropdown box at the top allows selection of predefined templates that are useful in managing energy usage. These visualizations can be customized by clicking the 'Show Customization Options' link.
For each visualization, a graph is provided at the top followed by a table of corresponding quantitative details, and list of meters and buildings being reported on. The selected options will be applied when switching between sites.
Customization Options
Click "Show Customization Options" to reveal a menu of possibilities for customizing and creating visualizations. Five categories of options allow selection of chart type, meters and units used, duration, options, and comparisons for unique and useful graphs and tables.
